METI - Fukushima Dai-ichi reactor readings spreadsheets

Ronan Kelly · Mar 17, 2011

I found this document released on the 18th. The figures in the CAMS row caught my eye. 4.77x10^1 = 47.7 Sv/hour and 7.98x10^1 = 79.8 Sv/hour. These would be massive doses and larger than anything we have seen before. Makoto or anyone, can you throw some light on what this document is about?

http://www.meti.go.jp/press/20110318001/20110318001-3.pdf

Ronan Kelly · Mar 18, 2011

Re: Makoto -Help with translation please

Re: Makoto -Help with translation please

It is apparantly reactor unit stats.

The second data row is the coolant height above or below the top of the fuel rods. There's pressures in there - probably reactor pressures, but I'm mighty interested in the radiation readings.

Laidback Al · Mar 18, 2011

Re: Makoto -Help with translation please

Re: Makoto -Help with translation please

machine translation

<!--[if gte mso 9]><xml> <w:WordDocument> <w:View>Normal</w:View> <w:Zoom>0</w:Zoom> <w:TrackMoves/> <w:TrackFormatting/> <w:ValidateAgainstSchemas/> <w:SaveIfXMLInvalid>false</w:SaveIfXMLInvalid> <w:IgnoreMixedContent>false</w:IgnoreMixedContent> <w:AlwaysShowPlaceholderText>false</w:AlwaysShowPlaceholderText> <w

oNotPromoteQF/> <w:LidThemeOther>EN-US</w:LidThemeOther> <w:LidThemeAsian>X-NONE</w:LidThemeAsian> <w:LidThemeComplexScript>X-NONE</w:LidThemeComplexScript> <w:Compatibility> <w:BreakWrappedTables/> <w:SnapToGridInCell/> <w:WrapTextWithPunct/> <w:UseAsianBreakRules/> <w

ontGrowAutofit/> <w:SplitPgBreakAndParaMark/> <w:EnableOpenTypeKerning/> <w

ontFlipMirrorIndents/> <w:OverrideTableStyleHps/> </w:Compatibility> <m:mathPr> <m:mathFont m:val="Cambria Math"/> <m:brkBin m:val="before"/> <m:brkBinSub m:val="--"/> <m:smallFrac m:val="off"/> <m:dispDef/> <m:lMargin m:val="0"/> <m:rMargin m:val="0"/> <m:defJc m:val="centerGroup"/> <m:wrapIndent m:val="1440"/> <m:intLim m:val="subSup"/> <m:naryLim m:val="undOvr"/> </m:mathPr></w:WordDocument> </xml><![endif]--> Title:[FONT=&quot] [/FONT]Spectral sequence parameters Burajito Fukushima Daiichi Nuclear Power Station[FONT=&quot][/FONT]
[FONT=&quot] [/FONT]
[FONT=&quot]福島第一原子力発電所ブラジト幽連パラメータ[/FONT][FONT=&quot][/FONT]

<!--[if gte mso 9]><xml> <w:WordDocument> <w:View>Normal</w:View> <w:Zoom>0</w:Zoom> <w:TrackMoves/> <w:TrackFormatting/> <w:ValidateAgainstSchemas/> <w:SaveIfXMLInvalid>false</w:SaveIfXMLInvalid> <w:IgnoreMixedContent>false</w:IgnoreMixedContent> <w:AlwaysShowPlaceholderText>false</w:AlwaysShowPlaceholderText> <w

oNotPromoteQF/> <w:LidThemeOther>EN-US</w:LidThemeOther> <w:LidThemeAsian>X-NONE</w:LidThemeAsian> <w:LidThemeComplexScript>X-NONE</w:LidThemeComplexScript> <w:Compatibility> <w:BreakWrappedTables/> <w:SnapToGridInCell/> <w:WrapTextWithPunct/> <w:UseAsianBreakRules/> <w

ontGrowAutofit/> <w:SplitPgBreakAndParaMark/> <w:EnableOpenTypeKerning/> <w

ontFlipMirrorIndents/> <w:OverrideTableStyleHps/> </w:Compatibility> <m:mathPr> <m:mathFont m:val="Cambria Math"/> <m:brkBin m:val="before"/> <m:brkBinSub m:val="--"/> <m:smallFrac m:val="off"/> <m:dispDef/> <m:lMargin m:val="0"/> <m:rMargin m:val="0"/> <m:defJc m:val="centerGroup"/> <m:wrapIndent m:val="1440"/> <m:intLim m:val="subSup"/> <m:naryLim m:val="undOvr"/> </m:mathPr></w:WordDocument> </xml><![endif]--> Row 1 -

[FONT=&quot]注水状況[/FONT][FONT=&quot] irrigation conditions[/FONT]

Row 2 -

[FONT=&quot]麽邦水位[/FONT][FONT=&quot] ??? water[/FONT]

Row 3 -

[FONT=&quot]原？[/FONT][FONT=&quot]^[/FONT][FONT=&quot]圧力[/FONT]Original? Pressure ^

Row 4 -

[FONT=&quot]原子炉水温度[/FONT][FONT=&quot] Water Temperature Reactor[/FONT]

AlaskaDenise · Mar 18, 2011

Re: Makoto -Help with translation please

Re: Makoto -Help with translation please

RoRo said:
It is apparantly reactor unit stats.

The second data row is the coolant height above or below the top of the fuel rods. There's pressures in there - probably reactor pressures, but I'm mighty interested in the radiation readings.

Here's a link to another reactor spec sheet - in English:
http://www.flutrackers.com/forum/showpost.php?p=400026&postcount=128

.

makoto · Mar 18, 2011

Re: Makoto -Help with translation please

Re: Makoto -Help with translation please

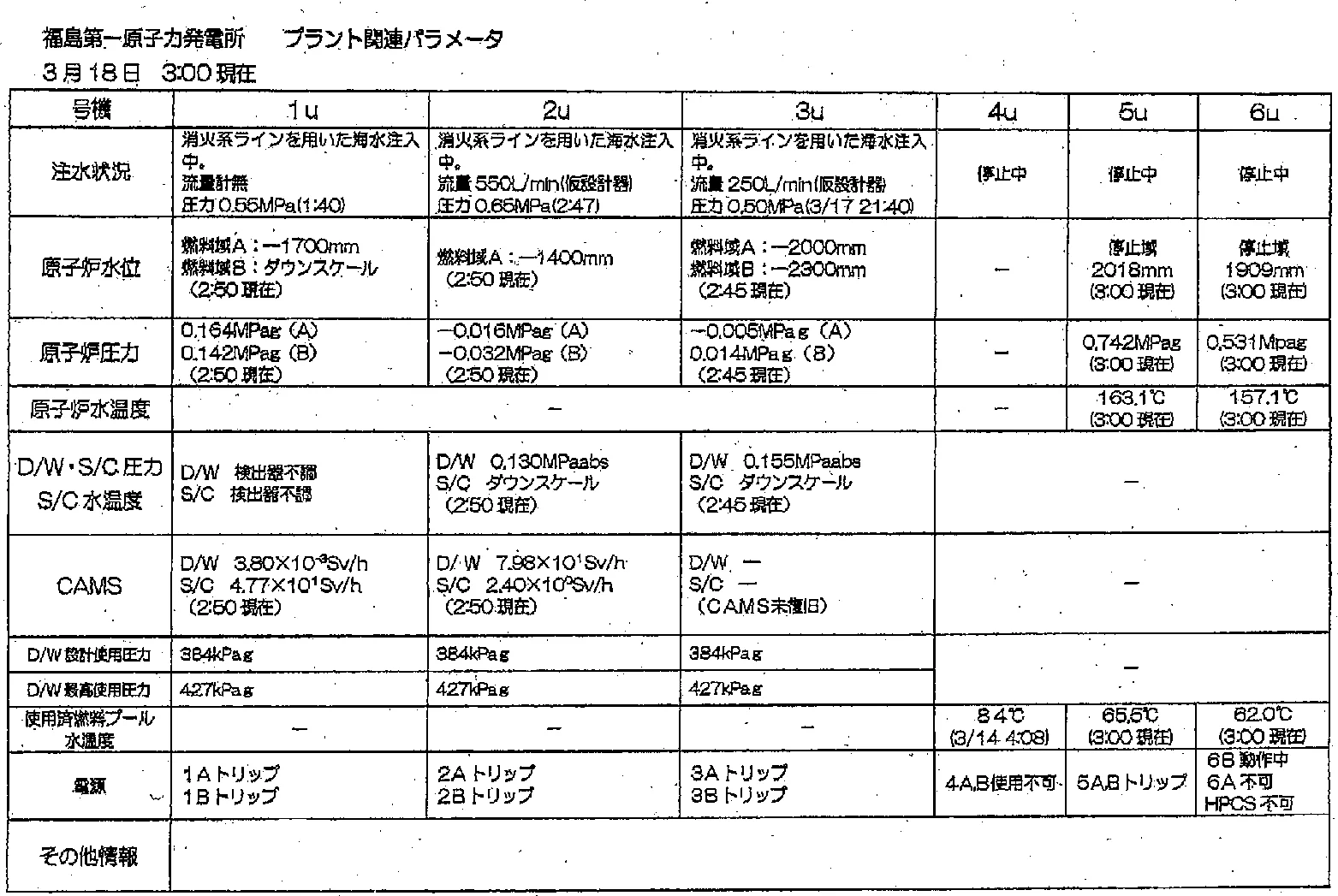

福島第一原子力発電所
Fukushima Daiichi Nuclear Power Station
プラント関連パラメータ
Plant-related parameters

注水状況 pour water conditions
1u: infusion of seawater by extinguishing line, flow rate: - , pressure: 0.55 MPa(01:40)
2u: infusion of seawater by extinguishing line, flow rate: 550L/min, pressure: 0.65 MPa(02:47)
3u: infusion of seawater by extinguishing line, flow rate: 250L/min, pressure: 0.50 MPa(3/17 21:40)
4u: inactive
5u: inactive
6u: inactive

原子炉水位 reactor water level
1u: fuel areaA: -1700mm fuel areaB: downscale(02:50)
2u: fuel areaA: -1400mm(02:50)
3u: fuel areaA: -2000mm fuel areaB: -2300mm(02:45)
4u: -
5u: stop area: 2018mm(03:00)
6u: stop area: 1909mm(03:00)

原子炉圧力 reactor pressure
1u: 0.164MPag(A) 0.142MPag(B) (02:50)
2u: -0.0164MPag(A) -0.032MPag(B) (02:50)
3u: -0.005MPag(A) 0.014MPag(B) (02:45)
4u: -
5u: 0.742MPag (03:00)
6u: 0.531Mag (03:00)

原子炉水温度 reactor water temperature
1u: -
2u: -
3u: -
4u: -
5u: 163.1℃ (03:00)
6u: 157.1℃ (03:00)

D/W/ S/C圧力 S/C水温度 D/W/ S/C pressure S/C water temperature
1u: D/W　faulted detector S/C faulted detector
2u: D/W 0.130MPaabs S/C downscale (02:50)
3u: D/W 0.155MPaabs S/C downscale (02:45)
4u: -
5u: -
6u: -

CAMS
omitted

D/W 設計使用圧力 designed using pressure
omitted

D/W 最高使用圧力 maximum using pressure
omitted

使用済み燃料プール水温度　spent fuel pool water temperature
1u: -
2u: -
3u: -
4u: 84℃ (3/14 04:08)
5u: 65.5℃ (03:00)
6u: 62.0℃ (03:00)

電源 power
1u: 1A trip 1B trip
2u: 2A trip 2B trip
3u: 3A trip 3B trip
4u: 4A, B disabled
5u: 5A, B trip
6u: 6B working 6A disabled HPCS disabled

その他情報 others and info

Ronan Kelly · Mar 18, 2011

Re: Makoto -Help with translation please

Re: Makoto -Help with translation please

:tiphat: Thanks Makoto,

Those CAMS numbers are not being released on the NISA press releases. I wonder why not? Denise, have you any idea what they mean?

Ronan Kelly · Mar 18, 2011

Re: Makoto -Help with translation please

Re: Makoto -Help with translation please

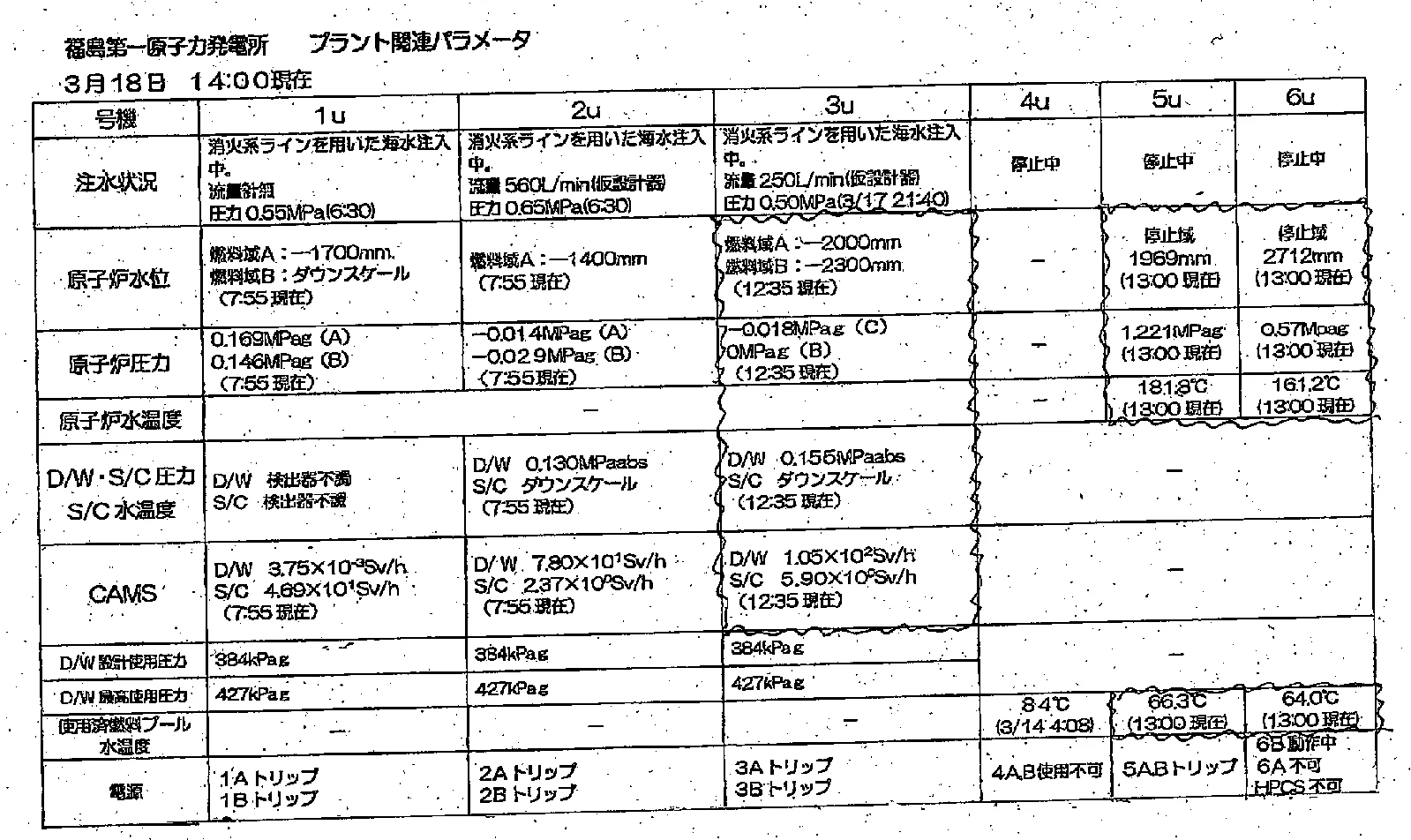

Latest reactor specs document shows Unit 5 water level down, pressure and temperature both up. Also shows a further increase in spent fuel water temperature at Units 5 and 6.
Also includes a radiation reading of 105 Sv/hour at Unit 3.

The outline squiggles were on the document as released.

http://www.meti.go.jp/press/20110318008/20110318008-4.pdf

sharon sanders · Mar 18, 2011

Re: Fukushima Dai-ichi reactor readings - Unit 5: water level dropping, increasing in pressure and temperature

Re: Fukushima Dai-ichi reactor readings - Unit 5: water level dropping, increasing in pressure and temperature

The source of this document is the Japan Ministry of Economy, Trade & Industry

http://www.meti.go.jp/

Laidback Al · Mar 18, 2011

Re: METI - Fukushima Dai-ichi reactor readings spreadsheet - Unit 5: water level dropping, increasing in pressure and temperature

Re: METI - Fukushima Dai-ichi reactor readings spreadsheet - Unit 5: water level dropping, increasing in pressure and temperature

Those CAMS numbers are not being released on the NISA press releases. I wonder why not? Denise, have you any idea what they mean?

I am not Denise but an internet search reveals that CAM may stand for Continuous Air Monitoring.

Ronan Kelly · Mar 19, 2011

Re: METI - Fukushima Dai-ichi reactor readings spreadsheet - Unit 5: water level dropping, increasing in pressure and temperature

Re: METI - Fukushima Dai-ichi reactor readings spreadsheet - Unit 5: water level dropping, increasing in pressure and temperature

Latest documents (12:00 March 19th) show spent fuel rod pool temperature in Unit 5 at 66.6C, and 66.5C for unit 6. Both up since yesterday.

Pressure in Unit 5 is up again to 1.359MPa from 1.221MPa yesterday.
Water level is up slightly to 1984mm.
Temperature up slightly to 183C.

Pressure in Unit 6 is up from 0.57MPa to 0.825MPa.
Water level has dropped from 2712 to 1620mm
Temperature up from 161.2 to 167.2C

http://www.meti.go.jp/press/20110319003/20110319003-4.pdf

Ronan Kelly · Mar 19, 2011

Re: METI - Fukushima Dai-ichi reactor readings spreadsheet - Status of Units 5 and 6

Re: METI - Fukushima Dai-ichi reactor readings spreadsheet - Status of Units 5 and 6

Latest NISA press release 18:30 March 19th http://www.meti.go.jp/press/20110319005/20110319005-1.pdf

Pressure in Unit 5 1.754 MPa ( I'm not 100% certain that this is measuring the same thing as on the spreadsheets), Water level at 1928mm, and spent fuel rod temperature down to 48.1C

Unit 6 has dropped to 0.559 MPa (Same proviso), water level back up to 2590mm, spent fuel pool up slightly at 67C.

http://www.meti.go.jp/press/20110319005/20110319005-1.pdf

Ronan Kelly · Mar 20, 2011

Re: METI - Fukushima Dai-ichi reactor readings spreadsheet - Status of Units 5 and 6

Re: METI - Fukushima Dai-ichi reactor readings spreadsheet - Status of Units 5 and 6

Latest update March 20 7:00.

Unit 5: spent fuel temperature: 37.1C, Reactor Pressure down to 1.296 MPa. Water level at 1981mm and Reactor Temperature at 181.3C.

Unit 6: spent fuel temperature: 41.0C, Reactor Pressure 0.716 MPa. Water level 2000mm, Reactor Temperature at 161.8C.

It would appear that restoration of power has stabilized the situation.

http://www.meti.go.jp/press/20110320001/20110320001-6.pdf

Ronan Kelly · Mar 20, 2011

Re: METI - Fukushima Dai-ichi reactor readings spreadsheet - Status of Units 5 and 6

Re: METI - Fukushima Dai-ichi reactor readings spreadsheet - Status of Units 5 and 6

Latest Update March 20, 14:00.
http://www.meti.go.jp/press/20110320002/20110320002-2.pdf

Unit 5: spent fuel temperature: 35.2C, Reactor Pressure down to 0.432 MPa. Water level at 1643mm and Reactor Temperature at 107C.

Unit 6: spent fuel temperature: 30.0C, Reactor Pressure 0.794 MPa. Water level 1750mm, Reactor Temperature at 166C.

Ronan Kelly · Mar 20, 2011

Re: METI - Fukushima Dai-ichi reactor readings spreadsheet - Status of Units 5 and 6

Re: METI - Fukushima Dai-ichi reactor readings spreadsheet - Status of Units 5 and 6

Latest Update March 20, 16:00 http://www.meti.go.jp/press/20110320002/20110320002-3.pdf

Updated figures for reactors 1-3 on spreadsheet.

Unit 4 No data.

Unit 5: spent fuel temperature: 35.1C, Reactor Pressure down to 0.147 MPa. Water level at 2501mm and Reactor Temperature at 76.5C.

Unit 6: spent fuel temperature: 28.0C, Reactor Pressure 0.690 MPa. Water level 2376mm, Reactor Temperature at 167.2C.

Ronan Kelly · Mar 21, 2011

Re: METI - Fukushima Dai-ichi reactor readings spreadsheet - Status of Units 5 and 6

Re: METI - Fukushima Dai-ichi reactor readings spreadsheet - Status of Units 5 and 6

As of 05:00 March 21, http://www.meti.go.jp/press/20110321003/20110321003-3.pdf

Updated pressure readings for Units 1-3.

Unit 4 no data.

Unit 5: spent fuel temperature: 39.5C, Reactor Pressure down to 0.109 MPa. Water level at 2104mm and Reactor Temperature at 34.4C.

Unit 6: spent fuel temperature: 32.0C, Reactor Pressure 0.109 MPa. Water level 1764mm, Reactor Temperature at 28.2C.

http://www.meti.go.jp/press/20110321003/20110321003-3.pdf

http://www.meti.go.jp/press/20110321003/20110321003-4.pdf

Ronan Kelly · Mar 21, 2011

Re: METI - Fukushima Dai-ichi reactor readings spreadsheet - Status of Units 5 and 6

Re: METI - Fukushima Dai-ichi reactor readings spreadsheet - Status of Units 5 and 6

Updated to 16:00 March 21; http://www.meti.go.jp/press/20110321004/20110321004-3.pdf

and

http://www.meti.go.jp/press/20110321004/20110321004-4.pdf

Updated pressure readings for Units 1-3.

No Data for Unit 4.

Unit 5: spent fuel temperature: 42.3C, Reactor Pressure down to 0.108 MPa. Water level at 2069mm and Reactor Temperature at 53.2C.

Unit 6: spent fuel temperature: 36.0C, Reactor Pressure 0.106 MPa. Water level 1557mm, Reactor Temperature at 23.6C.

Ronan Kelly · Mar 21, 2011

Re: METI - Fukushima Dai-ichi reactor readings spreadsheet - Status of Units 5 and 6

Re: METI - Fukushima Dai-ichi reactor readings spreadsheet - Status of Units 5 and 6

Stats at 17:00 March 21st;

http://www.meti.go.jp/press/20110321005/20110321005-3.pdf
and
http://www.meti.go.jp/press/20110321005/20110321005-4.pdf

Spent fuel pool in Unit 2 given as 50C.

Ronan Kelly · Mar 22, 2011

Re: METI - Fukushima Dai-ichi reactor readings spreadsheet - Status of Units 5 and 6

Re: METI - Fukushima Dai-ichi reactor readings spreadsheet - Status of Units 5 and 6

Stats in English up to 7:30, March 22: http://www.nisa.meti.go.jp/english/files/en20110322-2-2.pdf

and 11:00, March 22: http://www.nisa.meti.go.jp/english/files/en20110322-3-2.pdf

Spent Fuel Pool in unit 2 given as 53C

Ronan Kelly · Mar 22, 2011

Re: METI - Fukushima Dai-ichi reactor readings spreadsheet - Status of Units 5 and 6

Re: METI - Fukushima Dai-ichi reactor readings spreadsheet - Status of Units 5 and 6

Japanese stats table up to 7:30 March 22: http://www.meti.go.jp/press/20110322003/20110322003-3.pdf

and up to 11:00 March 22: http://www.meti.go.jp/press/20110322005/20110322005-3.pdf

Ronan Kelly · Mar 22, 2011

Re: METI - Fukushima Dai-ichi reactor readings spreadsheets

Updated to 17:00 March 22. http://www.meti.go.jp/press/20110322010/20110322010-3.pdf

Temperature in Unit 2 spent fuel pool is once again given at 50C, with the datum date 3/22; 15:30.

graphically: http://www.meti.go.jp/press/20110322010/20110322010-4.pdf
