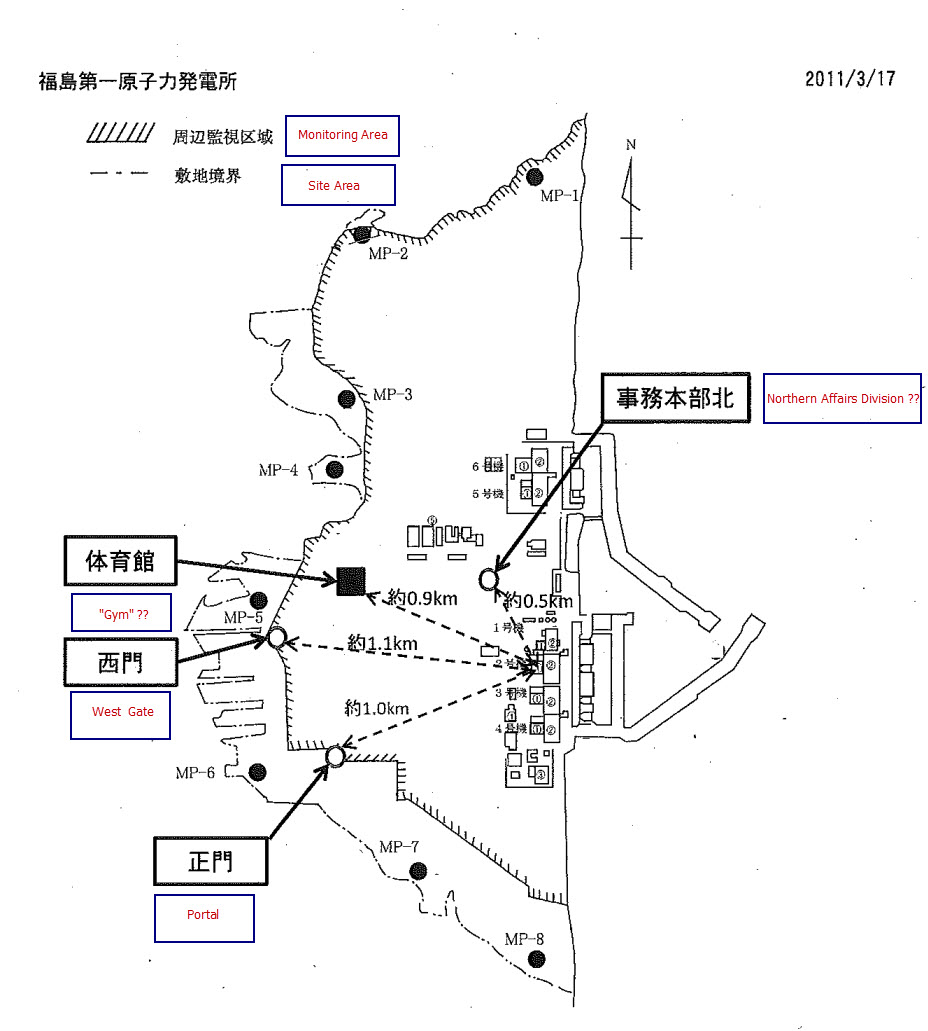

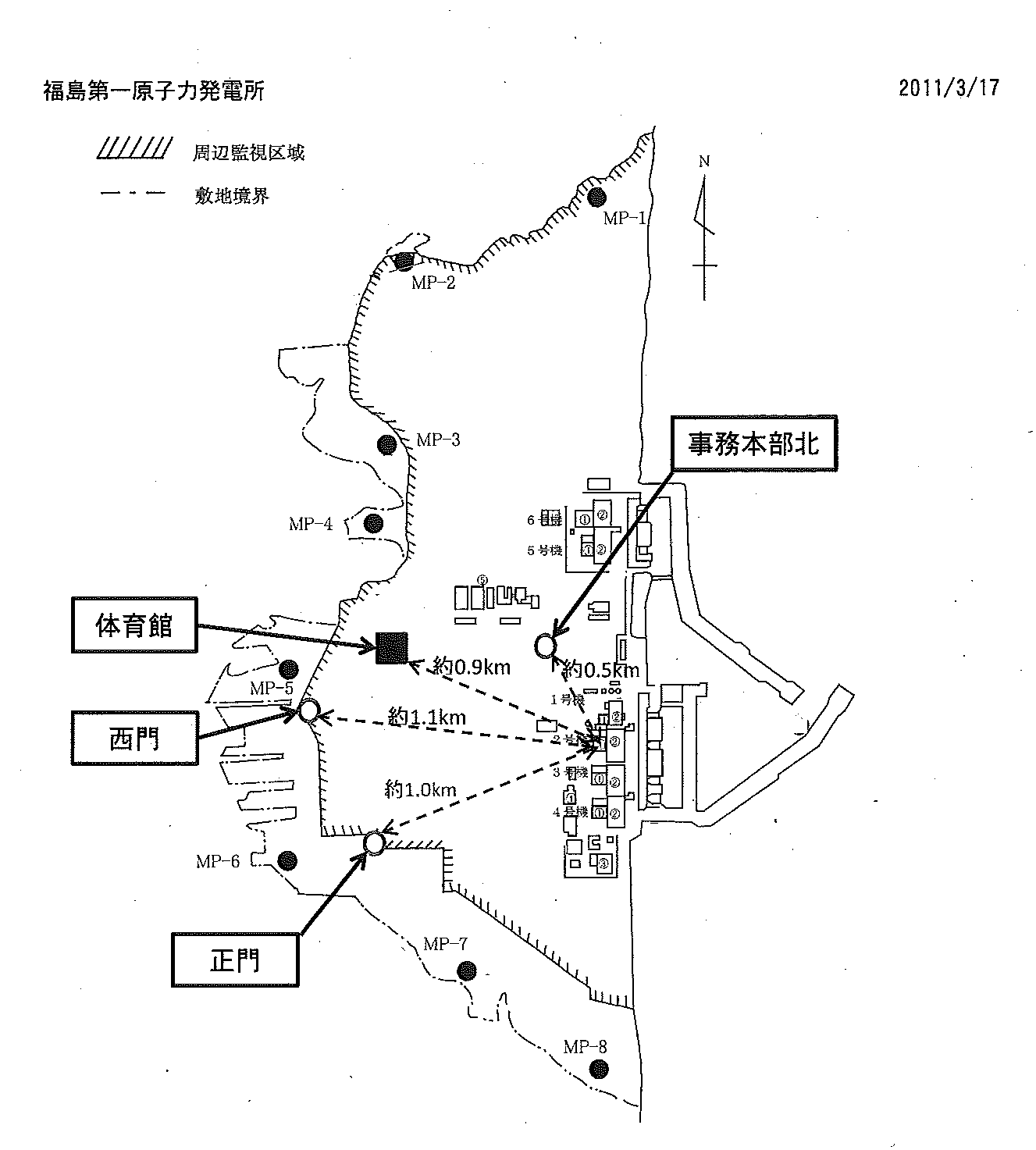

Site Plan including measurement points. Latest radiation readings related to these points; http://www.flutrackers.com/forum/attachment.php?attachmentid=7845&d=1300393322
-
FluTrackers.com Inc. does not provide medical advice. Information on this web site is collected from various internet resources, and the FluTrackers board of directors makes no warranty to the safety, efficacy, correctness or completeness of the information posted on this site by any author or poster. The information collated here is for instructional and/or discussion purposes only and is NOT intended to diagnose or treat any disease, illness, or other medical condition. Every individual reader or poster should seek advice from their personal physician/healthcare practitioner before considering or using any interventions that are discussed on this website. By continuing to access this website you agree to consult your personal physican before using any interventions posted on this website, and you agree to hold harmless FluTrackers.com Inc., the board of directors, the members, and all authors and posters for any effects from use of any medication, supplement, vitamin or other substance, device, intervention, etc. mentioned in posts on this website, or other internet venues referenced in posts on this website. -
We are not asking for any donations. Do not donate to any entity who says they are raising funds for us.
Fukushima Daiichi site plan and daily on-site radiation readings
- Thread starter Ronan Kelly
- Start date
Ronan Kelly
Retired 2020
Re: Fukushima Daiichi site plan
Re: Fukushima Daiichi site plan
Sorry, fixed image.
Re: Fukushima Daiichi site plan
Sorry, fixed image.
Ronan Kelly
Retired 2020
Re: Fukushima Daiichi site plan
Re: Fukushima Daiichi site plan
For use with map above:
On Site radiation readings to 08:00 March 18th; http://www.meti.go.jp/press/20110318001/20110318001-2.pdf
Re: Fukushima Daiichi site plan
For use with map above:
On Site radiation readings to 08:00 March 18th; http://www.meti.go.jp/press/20110318001/20110318001-2.pdf
Laidback Al
Well-known member
Re: Fukushima Daiichi site plan
Re: Fukushima Daiichi site plan
Machine translation of the locations identified on map in post #1
Re: Fukushima Daiichi site plan
Machine translation of the locations identified on map in post #1
Ronan Kelly
Retired 2020
Re: Fukushima Daiichi site plan
Re: Fukushima Daiichi site plan
Radiation readings up to 16:00 March 18th.
http://www.meti.go.jp/press/20110318008/20110318008-3.pdf
Re: Fukushima Daiichi site plan
Radiation readings up to 16:00 March 18th.
http://www.meti.go.jp/press/20110318008/20110318008-3.pdf
Ronan Kelly
Retired 2020
Re: Fukushima Daiichi site plan
Re: Fukushima Daiichi site plan
The "Northern Affairs Division" reading increased suddenly from 3582 microSv/h to 4485 microSv/h by 16:00. (Page 3)
Re: Fukushima Daiichi site plan
The "Northern Affairs Division" reading increased suddenly from 3582 microSv/h to 4485 microSv/h by 16:00. (Page 3)
Ronan Kelly
Retired 2020
Re: Fukushima Daiichi site plan
Re: Fukushima Daiichi site plan
http://www.meti.go.jp/press/20110319002/20110319002-2.pdf
Radiation readings up to 09:00 on March 19th. The "Northern Affairs Division" reading peaked above 5000 micro Sv/hour at 17:00 on the 18th before dropping back to around 3500.
Re: Fukushima Daiichi site plan
http://www.meti.go.jp/press/20110319002/20110319002-2.pdf
Radiation readings up to 09:00 on March 19th. The "Northern Affairs Division" reading peaked above 5000 micro Sv/hour at 17:00 on the 18th before dropping back to around 3500.
Ronan Kelly
Retired 2020
Re: Fukushima Daiichi site plan and daily on-site radiation readings
http://www.meti.go.jp/press/20110319003/20110319003-2.pdf
Readings up to 14:00 March 19th.
http://www.meti.go.jp/press/20110319003/20110319003-2.pdf
Readings up to 14:00 March 19th.
Ronan Kelly
Retired 2020
Re: Fukushima Daiichi site plan and daily on-site radiation readings
Readings up to 11:00 March 20th.
http://www.meti.go.jp/press/20110320001/20110320001-5.pdf
Graph on Page 5 indicates that radiation levels have dropped by 25% over the past 24 hours.
Readings up to 11:00 March 20th.
http://www.meti.go.jp/press/20110320001/20110320001-5.pdf
Graph on Page 5 indicates that radiation levels have dropped by 25% over the past 24 hours.
Ronan Kelly
Retired 2020
Re: Fukushima Daiichi site plan and daily on-site radiation readings
Readings up to 16:30 March 20th. http://www.meti.go.jp/press/20110320002/20110320002-4.pdf
Page 5 shows a broad peak in radiation readings from 14:00 to 16:30. Not quite returned back to baseline yet. The corresponding data points are on page 1.
Readings up to 16:30 March 20th. http://www.meti.go.jp/press/20110320002/20110320002-4.pdf
Page 5 shows a broad peak in radiation readings from 14:00 to 16:30. Not quite returned back to baseline yet. The corresponding data points are on page 1.
Ronan Kelly
Retired 2020
Re: Fukushima Daiichi site plan and daily on-site radiation readings
Readings up to March 20, 21:00 (in english). http://www.nisa.meti.go.jp/english/files/en20110320-4-2.pdf
Readings up to March 20, 21:00 (in english). http://www.nisa.meti.go.jp/english/files/en20110320-4-2.pdf
Ronan Kelly
Retired 2020
Re: Fukushima Daiichi site plan and daily on-site radiation readings
Readings up to 22:30 March 20. (in Japanese) http://www.meti.go.jp/press/20110321001/20110321001-2.pdf
Levels seem to be trending down. (see graph page 5).
Readings up to 22:30 March 20. (in Japanese) http://www.meti.go.jp/press/20110321001/20110321001-2.pdf
Levels seem to be trending down. (see graph page 5).
Ronan Kelly
Retired 2020
Re: Fukushima Daiichi site plan and daily on-site radiation readings
Readings up to 10:30, March 21. http://www.meti.go.jp/press/20110321003/20110321003-2.pdf
Readings continue to diminish.
Readings up to 10:30, March 21. http://www.meti.go.jp/press/20110321003/20110321003-2.pdf
Readings continue to diminish.
Ronan Kelly
Retired 2020
Re: Fukushima Daiichi site plan and daily on-site radiation readings
Readings up to 16:50 March 21. http://www.meti.go.jp/press/20110321004/20110321004-2.pdf
Switched readings from point 1 to point 4 at 16:42.
Readings up to 16:50 March 21. http://www.meti.go.jp/press/20110321004/20110321004-2.pdf
Switched readings from point 1 to point 4 at 16:42.
Ronan Kelly
Retired 2020
Re: Fukushima Daiichi site plan and daily on-site radiation readings
Readings up to 16:50 March 21 (in English) http://www.nisa.meti.go.jp/english/files/en20110321-4-2.pdf
Readings up to 16:50 March 21 (in English) http://www.nisa.meti.go.jp/english/files/en20110321-4-2.pdf
Ronan Kelly
Retired 2020
Re: Fukushima Daiichi site plan and daily on-site radiation readings
Readings to 21:10 March 21; http://www.meti.go.jp/press/20110321005/20110321005-2.pdf
The graph breaks at 16:30 as readings were switched from position 1 to position 4.
Readings to 21:10 March 21; http://www.meti.go.jp/press/20110321005/20110321005-2.pdf
The graph breaks at 16:30 as readings were switched from position 1 to position 4.
Ronan Kelly
Retired 2020
Re: Fukushima Daiichi site plan and daily on-site radiation readings
Readings up to 7:30 on March 22. http://www.meti.go.jp/press/20110322003/20110322003-2.pdf
Large increase in detections between 17:50 and 19:10 on the 21st. Readings at point 4 have now dropped to a sixth as much as yesterday.
The above document (Page 10) also includes readings for I-131,132 and 133 and Cs-134,136 and 137.
Readings up to 7:30 on March 22. http://www.meti.go.jp/press/20110322003/20110322003-2.pdf
Large increase in detections between 17:50 and 19:10 on the 21st. Readings at point 4 have now dropped to a sixth as much as yesterday.
The above document (Page 10) also includes readings for I-131,132 and 133 and Cs-134,136 and 137.
Ronan Kelly
Retired 2020
Re: Fukushima Daiichi site plan and daily on-site radiation readings
Readings up to 12:30, March 22.
http://www.meti.go.jp/press/20110322005/20110322005-2.pdf
also now includes Co-58 readings (Page 11).
Readings up to 12:30, March 22.
http://www.meti.go.jp/press/20110322005/20110322005-2.pdf
also now includes Co-58 readings (Page 11).
Ronan Kelly
Retired 2020
Re: Fukushima Daiichi site plan and daily on-site radiation readings
Readings up to 18:00 March 22. http://www.meti.go.jp/press/20110322010/20110322010-2.pdf
Readings up to 18:00 March 22. http://www.meti.go.jp/press/20110322010/20110322010-2.pdf
